Drone Control Board Development — Reliable, Redundant, and Real-Time

Drone Control Board Development is a custom-built flight control solution featuring an STM32F4 microcontroller integrated with the Pixhawk flight system.

The board handles user command communication via UART, providing a reliable and low-latency control interface essential for precise drone maneuvering.

For redundancy, a backup PPM (Pulse Position Modulation) channel was implemented using two general-purpose timers, ensuring continuous operation if the UART link fails.

This dual-channel design enhances flight safety, stability, and responsiveness during mission-critical operations.

The system is compatible with both Pixhawk and Ardupilot ecosystems, ensuring broad applicability and robust performance.

Drone flight systems often face communication reliability and redundancy challenges:

• Single-channel control links increase failure risk
• Limited fallback mechanisms during link loss
• Latency in command transfer affects flight stability
• Integration complexity between controllers and flight stacks

These issues can compromise flight safety, responsiveness, and overall system reliability.

We engineered a redundant flight control architecture using an STM32F4 microcontroller integrated with Pixhawk to ensure real-time, fail-safe operation.

• Implemented UART-based command communication for primary control
• Developed backup PPM control using dual timer channels
• Integrated redundancy logic for automatic fallback

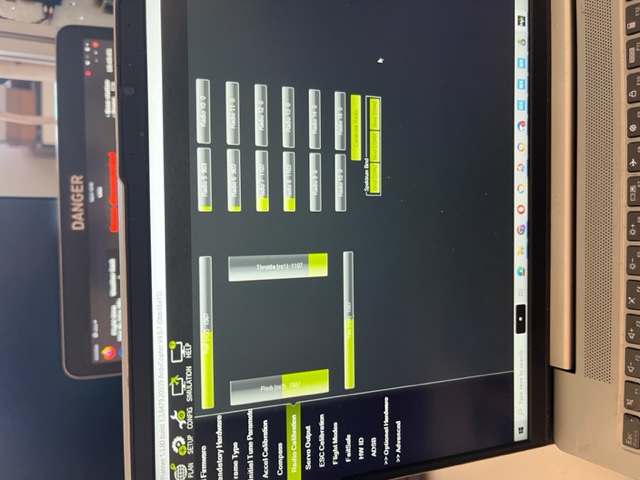

• Validated compatibility with Pixhawk and Ardupilot
• Designed for low latency, stability, and smooth user experience

With this setup, the drone maintains full maneuverability even during primary channel failure.

Results?

Reliable, redundant control with seamless failover and precise response

Built for safety, engineered for performance.

• Microcontroller: STM32F4 series
• Flight System: Pixhawk with Ardupilot support
• Primary Control: UART communication channel
• Backup Control: PPM signal via two general-purpose timers
• Interface: Real-time user command link with redundancy logic

System Architecture

• UART handles main control data between Pixhawk and STM32
• PPM fallback ensures signal continuity if UART fails
• Timers synchronized for consistent pulse generation
• Validated under multiple flight scenarios for stability and responsiveness

Testing confirmed stable control handover and low-latency response under simulated failure conditions.

This demonstrates that redundant drone control architectures can deliver both reliability and high precision on embedded hardware.
